AHRS Class Reference

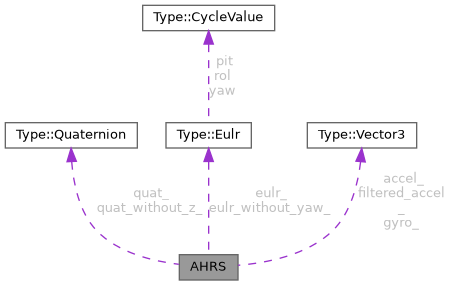

Collaboration diagram for AHRS:

Public Member Functions
void	OnData (const Type::Vector3 &accel, const Type::Vector3 &gyro)
void	ThreadTask ()
void	Update ()
void	GetEulr ()
void	DisplayData ()
void	DisplyDataWithoutYaw ()
void	StartRecordData ()
void	RecordTask ()
void	RegisterDataCallback (const std::function< void(const Type::Vector3 &, const Type::Vector3 &, const Type::Eulr &)> &callback)
void	RunUnitTest ()

Data Fields
Type::Quaternion	quat_ {}
Type::Eulr	eulr_ {}
Type::Vector3	accel_ {}
Type::Vector3	gyro_ {}

Private Attributes
std::chrono::duration< uint64_t, std::ratio< 1, 1000000 > >	last_wakeup_
std::chrono::duration< uint64_t, std::ratio< 1, 1000000 > >	now_
std::chrono::duration< uint64_t, std::ratio< 1, 1000000 > >	start_
float	dt_ = 0.0f
Type::Quaternion	quat_without_z_ {}
Type::Eulr	eulr_without_yaw_ {}
Type::Vector3	filtered_accel_ {}
std::binary_semaphore	ready_
std::function< void(const Type::Vector3 &acc, const Type::Vector3 &gyro, const Type::Eulr &eulr)>	data_callback_
std::thread	thread_
std::thread	record_thread_

Detailed Description

Definition at line 14 of file comp_ahrs.hpp.

Constructor & Destructor Documentation

AHRS()

AHRS::AHRS ( )

inline

Definition at line 16 of file comp_ahrs.hpp.

         : ready_(0) {
    quat_.q0 = -1.0f;
    quat_.q1 = 0.0f;
    quat_.q2 = 0.0f;
    quat_.q3 = 0.0f;

    start_ = now_ = last_wakeup_ =
        std::chrono::duration_cast<std::chrono::microseconds>(
            std::chrono::system_clock::now().time_since_epoch());

    thread_ = std::thread(&AHRS::ThreadTask, this);
  }

Member Function Documentation

DisplayData()

void AHRS::DisplayData ( )

inline

Definition at line 158 of file comp_ahrs.hpp.

                     {
    std::cout << std::format(
        "Quaternion: [q0={:+.4f}, q1={:+.4f}, q2={:+.4f}, q3={:+.4f}] | "
        "Eulr: [rol={:+.4f}, pit={:+.4f}, yaw={:+.4f}] ",
        quat_.q0, quat_.q1, quat_.q2, quat_.q3, eulr_.rol.Value(),
        eulr_.pit.Value(), eulr_.yaw.Value());

    std::cout << std::format(
        "Accel: [x={:+.4f}, y={:+.4f}, z={:+.4f}]] dt={:+.8f}\n",
        filtered_accel_.x, filtered_accel_.y, filtered_accel_.z, dt_);
  }

DisplyDataWithoutYaw()

void AHRS::DisplyDataWithoutYaw ( )

inline

Definition at line 170 of file comp_ahrs.hpp.

                              {
    std::cout << std::format(
        "Quaternion: [q0={:+.4f}, q1={:+.4f}, q2={:+.4f}, q3={:+.4f}] | "
        "Eulr: [rol={:+.4f}, pit={:+.4f}, yaw={:+.4f}]\n",
        quat_without_z_.q0, quat_without_z_.q1, quat_without_z_.q2,
        quat_without_z_.q3, eulr_without_yaw_.rol.Value(),
        eulr_without_yaw_.pit.Value(), eulr_without_yaw_.yaw.Value());
  }

GetEulr()

void AHRS::GetEulr ( )

inline

Definition at line 141 of file comp_ahrs.hpp.

                 {
    float yaw = std::atan2(2 * (quat_.q0 * quat_.q3 + quat_.q1 * quat_.q2),
                           1 - 2 * (quat_.q3 * quat_.q3 + quat_.q2 * quat_.q2));
    float pitch = std::asin(2 * (quat_.q0 * quat_.q2 - quat_.q1 * quat_.q3));
    float roll =
        std::atan2(2 * (quat_.q0 * quat_.q1 + quat_.q2 * quat_.q3),
                   1 - 2 * (quat_.q2 * quat_.q2 + quat_.q1 * quat_.q1));

    eulr_.pit = pitch;
    eulr_.rol = roll;
    eulr_.yaw = yaw;

    if (data_callback_) {
      data_callback_(accel_, gyro_, eulr_);
    }
  }

OnData()

void AHRS::OnData ( const Type::Vector3 &  accel, const Type::Vector3 &  gyro  )

inline

Definition at line 29 of file comp_ahrs.hpp.

                                                                 {
    accel_ = accel;
    gyro_ = gyro;
    ready_.release();
  }

RecordTask()

void AHRS::RecordTask ( )

inline

Definition at line 183 of file comp_ahrs.hpp.

                    {
    std::ofstream csv_file("imu_data.csv");
    std::chrono::microseconds period_us(static_cast<int>(1000));

    std::chrono::steady_clock::time_point next_time, start_time;
    next_time = start_time = std::chrono::steady_clock::now();
    csv_file << "timestamp,ax,ay,az,gx,gy,gz,q0,q1,q2,q3,rol,pit,yaw,label\n";
    while (true) {
      csv_file << std::to_string((next_time.time_since_epoch().count() -
                                  start_time.time_since_epoch().count()) /
                                 1000)
               << "," << accel_.x << "," << accel_.y << "," << accel_.z << ","
               << gyro_.x << "," << gyro_.y << "," << gyro_.z << "," << quat_.q0
               << "," << quat_.q1 << "," << quat_.q2 << "," << quat_.q3 << ","
               << eulr_.rol.Value() << "," << eulr_.pit.Value() << ","
               << eulr_.yaw.Value() << "," << "1\n";
      csv_file.flush();

      next_time += period_us;
      std::this_thread::sleep_until(next_time);
    }
  }

RegisterDataCallback()

void AHRS::RegisterDataCallback ( const std::function< void(const Type::Vector3 &, const Type::Vector3 &, const Type::Eulr &)> &  callback )

inline

Definition at line 206 of file comp_ahrs.hpp.

                                                            {
    data_callback_ = callback;
  }

RunUnitTest()

void AHRS::RunUnitTest ( )

inline

Definition at line 212 of file comp_ahrs.hpp.

                     {
    std::cout << "[UnitTest] Starting AHRS unit test...\n";

    // ---- Initialization section ----
    quat_ = {1.0f, 0.0f, 0.0f, 0.0f};
    accel_ = {0.01f, 0.01f, 1.0f};  // Slight tilt
    gyro_ = {0.0f, 0.0f, 0.0f};

    auto current_time = std::chrono::duration_cast<std::chrono::microseconds>(
        std::chrono::system_clock::now().time_since_epoch());

    start_ = now_ = last_wakeup_ = current_time;
    dt_ = 0.001f;  // 1ms sample period

    auto t0 = std::chrono::high_resolution_clock::now();

    // ---- Run Update ----
    auto t1 = std::chrono::high_resolution_clock::now();
    Update();
    auto t2 = std::chrono::high_resolution_clock::now();

    // ---- Convert to Euler angles ----
    GetEulr();
    auto t3 = std::chrono::high_resolution_clock::now();

    // ---- Output ----
    std::cout << "[UnitTest] Quaternion: ";
    std::cout << std::format(
        "[q0={:+.4f}, q1={:+.4f}, q2={:+.4f}, q3={:+.4f}]\n", quat_.q0,
        quat_.q1, quat_.q2, quat_.q3);

    std::cout << "[UnitTest] Euler Angles (rad): ";
    std::cout << std::format("[rol={:+.4f}, pit={:+.4f}, yaw={:+.4f}]\n",
                             eulr_.rol.Value(), eulr_.pit.Value(),
                             eulr_.yaw.Value());

    auto t4 = std::chrono::high_resolution_clock::now();

    // ---- Verification ----
    auto normalize_angle = [](float rad) -> float {
      while (rad > M_PI) rad -= 2.0f * M_PI;
      while (rad < -M_PI) rad += 2.0f * M_PI;
      return rad;
    };

    float norm_rol = normalize_angle(eulr_.rol.Value());
    float norm_pit = normalize_angle(eulr_.pit.Value());
    float norm_yaw = normalize_angle(eulr_.yaw.Value());

    const float tolerance = 0.1f;  // ~5.7 degrees

    if (std::abs(norm_rol) < tolerance && std::abs(norm_pit) < tolerance &&
        std::abs(norm_yaw) < tolerance) {
      std::cout
          << "[UnitTest] ✅ Test Passed: Orientation is correct at rest.\n";
    } else {
      std::cout << "[UnitTest] ❌ Test Failed: Unexpected orientation.\n";
    }

    auto t5 = std::chrono::high_resolution_clock::now();

    // ---- Timing report ----
    std::cout << std::format(
        "[Timing] Init & assignment     : {:>8.2f} µs\n",
        std::chrono::duration<float, std::micro>(t1 - t0).count());
    std::cout << std::format(
        "[Timing] Update()              : {:>8.2f} µs\n",
        std::chrono::duration<float, std::micro>(t2 - t1).count());
    std::cout << std::format(
        "[Timing] GetEulr()             : {:>8.2f} µs\n",
        std::chrono::duration<float, std::micro>(t3 - t2).count());
    std::cout << std::format(
        "[Timing] Output                : {:>8.2f} µs\n",
        std::chrono::duration<float, std::micro>(t4 - t3).count());
    std::cout << std::format(
        "[Timing] Verify                : {:>8.2f} µs\n",
        std::chrono::duration<float, std::micro>(t5 - t4).count());
    std::cout << std::format(
        "[Timing] Total                 : {:>8.2f} µs\n",
        std::chrono::duration<float, std::micro>(t5 - t0).count());
  }

StartRecordData()

void AHRS::StartRecordData ( )

inline

Definition at line 179 of file comp_ahrs.hpp.

                         {
    record_thread_ = std::thread(&AHRS::RecordTask, this);
  }

ThreadTask()

void AHRS::ThreadTask ( )

inline

Definition at line 35 of file comp_ahrs.hpp.

                    {
    while (true) {
      ready_.acquire();
      Update();
      GetEulr();
    }
  }

Update()

void AHRS::Update ( )

inline

Definition at line 43 of file comp_ahrs.hpp.

                {
    static float recip_norm;
    static float s0, s1, s2, s3;
    static float q_dot1, q_dot2, q_dot3, q_dot4;
    static float q_2q0, q_2q1, q_2q2, q_2q3, q_4q0, q_4q1, q_4q2, q_8q1, q_8q2,
        q0q0, q1q1, q2q2, q3q3;

    now_ = std::chrono::duration_cast<std::chrono::microseconds>(
        std::chrono::system_clock::now().time_since_epoch());

    dt_ = 0.001f;
    last_wakeup_ = now_;

    float ax = accel_.x;
    float ay = accel_.y;
    float az = accel_.z;

    float gx = gyro_.x;
    float gy = gyro_.y;
    float gz = gyro_.z;

    /* Rate of change of quaternion from gyroscope */
    q_dot1 = 0.5f * (-quat_.q1 * gx - quat_.q2 * gy - quat_.q3 * gz);
    q_dot2 = 0.5f * (quat_.q0 * gx + quat_.q2 * gz - quat_.q3 * gy);
    q_dot3 = 0.5f * (quat_.q0 * gy - quat_.q1 * gz + quat_.q3 * gx);
    q_dot4 = 0.5f * (quat_.q0 * gz + quat_.q1 * gy - quat_.q2 * gx);

    /* Compute feedback only if accelerometer measurement valid (avoids NaN in
     * accelerometer normalisation) */
    if (!((ax == 0.0f) && (ay == 0.0f) && (az == 0.0f))) {
      /* Normalise accelerometer measurement */
      recip_norm = 1.0f / sqrtf(ax * ax + ay * ay + az * az);
      ax *= recip_norm;
      ay *= recip_norm;
      az *= recip_norm;

      /* Auxiliary variables to avoid repeated arithmetic */
      q_2q0 = 2.0f * quat_.q0;
      q_2q1 = 2.0f * quat_.q1;
      q_2q2 = 2.0f * quat_.q2;
      q_2q3 = 2.0f * quat_.q3;
      q_4q0 = 4.0f * quat_.q0;
      q_4q1 = 4.0f * quat_.q1;
      q_4q2 = 4.0f * quat_.q2;
      q_8q1 = 8.0f * quat_.q1;
      q_8q2 = 8.0f * quat_.q2;
      q0q0 = quat_.q0 * quat_.q0;
      q1q1 = quat_.q1 * quat_.q1;
      q2q2 = quat_.q2 * quat_.q2;
      q3q3 = quat_.q3 * quat_.q3;

      /* Gradient decent algorithm corrective step */
      s0 = q_4q0 * q2q2 + q_2q2 * ax + q_4q0 * q1q1 - q_2q1 * ay;
      s1 = q_4q1 * q3q3 - q_2q3 * ax + 4.0f * q0q0 * quat_.q1 - q_2q0 * ay -
           q_4q1 + q_8q1 * q1q1 + q_8q1 * q2q2 + q_4q1 * az;
      s2 = 4.0f * q0q0 * quat_.q2 + q_2q0 * ax + q_4q2 * q3q3 - q_2q3 * ay -
           q_4q2 + q_8q2 * q1q1 + q_8q2 * q2q2 + q_4q2 * az;
      s3 = 4.0f * q1q1 * quat_.q3 - q_2q1 * ax + 4.0f * q2q2 * quat_.q3 -
           q_2q2 * ay;

      /* normalise step magnitude */
      recip_norm = 1.0f / sqrtf(s0 * s0 + s1 * s1 + s2 * s2 + s3 * s3);

      s0 *= recip_norm;
      s1 *= recip_norm;
      s2 *= recip_norm;
      s3 *= recip_norm;

      float beta_imu = 0;

      if (now_.count() - start_.count() > 1000000) {
        beta_imu = 2.0f;
      } else {
        beta_imu = 10.0f;
      }

      /* Apply feedback step */
      q_dot1 -= beta_imu * s0;
      q_dot2 -= beta_imu * s1;
      q_dot3 -= beta_imu * s2;
      q_dot4 -= beta_imu * s3;
    }

    /* Integrate rate of change of quaternion to yield quaternion */
    quat_.q0 += q_dot1 * dt_;
    quat_.q1 += q_dot2 * dt_;
    quat_.q2 += q_dot3 * dt_;
    quat_.q3 += q_dot4 * dt_;

    /* Normalise quaternion */
    recip_norm = 1.0f / sqrtf(quat_.q0 * quat_.q0 + quat_.q1 * quat_.q1 +
                              quat_.q2 * quat_.q2 + quat_.q3 * quat_.q3);
    quat_.q0 *= recip_norm;
    quat_.q1 *= recip_norm;
    quat_.q2 *= recip_norm;
    quat_.q3 *= recip_norm;
  }

Field Documentation

accel_

Type::Vector3 AHRS::accel_ {}

Definition at line 296 of file comp_ahrs.hpp.

{};

data_callback_

std::function<void(const Type::Vector3& acc, const Type::Vector3& gyro, const Type::Eulr& eulr)> AHRS::data_callback_

private

Definition at line 314 of file comp_ahrs.hpp.

dt_

float AHRS::dt_ = 0.0f

private

Definition at line 303 of file comp_ahrs.hpp.

eulr_

Type::Eulr AHRS::eulr_ {}

Definition at line 295 of file comp_ahrs.hpp.

{};

eulr_without_yaw_

Type::Eulr AHRS::eulr_without_yaw_ {}

private

Definition at line 306 of file comp_ahrs.hpp.

{};

filtered_accel_

Type::Vector3 AHRS::filtered_accel_ {}

private

Definition at line 308 of file comp_ahrs.hpp.

{};

gyro_

Type::Vector3 AHRS::gyro_ {}

Definition at line 297 of file comp_ahrs.hpp.

{};

last_wakeup_

std::chrono::duration<uint64_t, std::ratio<1, 1000000> > AHRS::last_wakeup_

private

Definition at line 300 of file comp_ahrs.hpp.

now_

std::chrono::duration<uint64_t, std::ratio<1, 1000000> > AHRS::now_

private

Definition at line 301 of file comp_ahrs.hpp.

quat_

Type::Quaternion AHRS::quat_ {}

Definition at line 294 of file comp_ahrs.hpp.

{};

quat_without_z_

Type::Quaternion AHRS::quat_without_z_ {}

private

Definition at line 305 of file comp_ahrs.hpp.

{};

ready_

std::binary_semaphore AHRS::ready_

private

Definition at line 310 of file comp_ahrs.hpp.

record_thread_

std::thread AHRS::record_thread_

private

Definition at line 316 of file comp_ahrs.hpp.

start_

std::chrono::duration<uint64_t, std::ratio<1, 1000000> > AHRS::start_

private

Definition at line 302 of file comp_ahrs.hpp.

thread_

std::thread AHRS::thread_

private

Definition at line 316 of file comp_ahrs.hpp.

---

The documentation for this class was generated from the following file:

• src/component/comp_ahrs.hpp
